@phun-ky/speccer / pin

Variable: pin ​

ts
const pin: {
  createPinElement: (
    content: string,
    options: SpeccerOptionsInterface,
    id: string,
    n: string
  ) => HTMLElement;
  pinElement: (
    targetElement: HTMLElement,
    parentElement: HTMLElement,
    content: string,
    options: SpeccerOptionsInterface
  ) => Promise<undefined | string>;
  pinElements: (
    sectionElement: HTMLElement,
    options?: SpeccerOptionsInterface
  ) => Promise<void>;
};

Defined in: main.ts:122

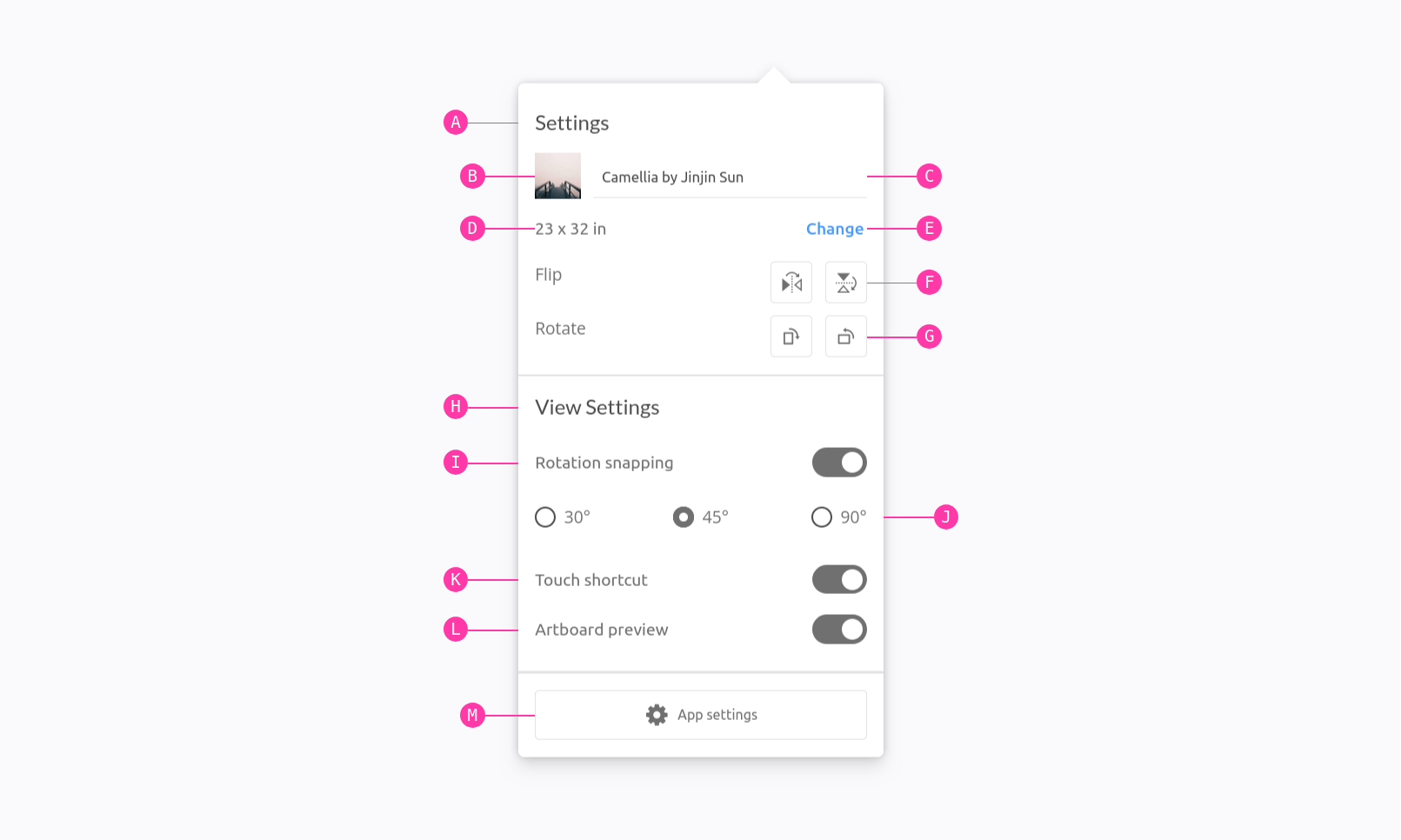

This feature annotate or highlight the anatomy of an element.

pin

In your component examples, use the following attribute. Remember to use the data-speccer="pin-area"-attribute on a parent element to scope the marking.

Type Declaration ​

createPinElement() ​

ts
createPinElement: (
  content: string,
  options: SpeccerOptionsInterface,
  id: string,
  n: string
) => HTMLElement;

Create a pin element with optional content, area description, and element type.

Parameters ​

content ​

string = ''

The content to add to the element.

options ​

SpeccerOptionsInterface

The option for styling.

id ​

string = ''

The id of the pinned element

n ​

string = 'span'

The element type.

Returns ​

HTMLElement

  • The created pin element.

Example ​

ts
const pinElement = createPinElement('A', 'outline top', 'div');
document.body.appendChild(pinElement);

pinElement() ​

ts
pinElement: (
  targetElement: HTMLElement,
  parentElement: HTMLElement,
  content: string,
  options: SpeccerOptionsInterface
) => Promise<undefined | string>;

Create and style the pin element as needed.

This function appends a new pin element to the document body based on the data-speccer="pin" attribute of the target element. It handles different styles, such as curly brackets or lines, based on the pin type.

Parameters ​

targetElement ​

HTMLElement

The target element that contains the pin data.

parentElement ​

HTMLElement

The parent element

content ​

string

The content to use.

options ​

SpeccerOptionsInterface

options

Returns ​

Promise<undefined | string>

A promise that resolves to the id of the pin element when the process is completed, or void if required input is invalid.

Example ​

ts
const targetElement = document.getElementById('target');
const parentElement = document.getElementById('parent');
const content = '…';
const options = { … };
pinElement(targetElement, parentElement, content, options).then(() => {
  console.log('process completed');
});

pinElements() ​

ts
pinElements: (sectionElement: HTMLElement, options?: SpeccerOptionsInterface) =>
  Promise<void>;

Create pinned elements based on the section element and its data-speccer attributes.

Parameters ​

sectionElement ​

HTMLElement

The section element containing pinned elements.

options? ​

SpeccerOptionsInterface

Options.

Returns ​

Promise<void>

  • A promise that resolves after creating pinned elements.

Example ​

ts
const sectionElement = document.getElementById('section');
pinElements(sectionElement);

Example ​

html
<div data-speccer="pin-area">
  <div
    data-speccer="pin [bracket [curly] |enclose] [left|right|top|bottom]"
    class="..."
  ></div>
</div>
