@phun-ky/speccer / spacing

Variable: spacing ​

ts
const spacing: {
  create: (text: string | number, tag: string) => HTMLElement;
  element: (
    targetElement: HTMLElement,
    options?: SpeccerOptionsInterface
  ) => Promise<void>;
};

Defined in: main.ts:99

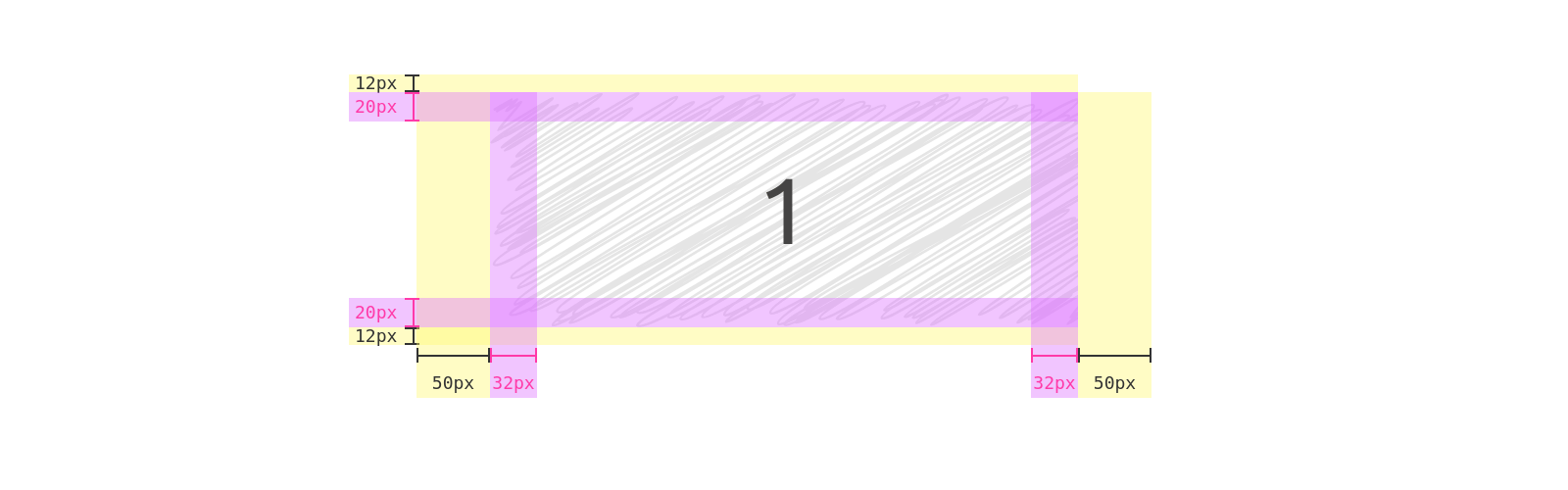

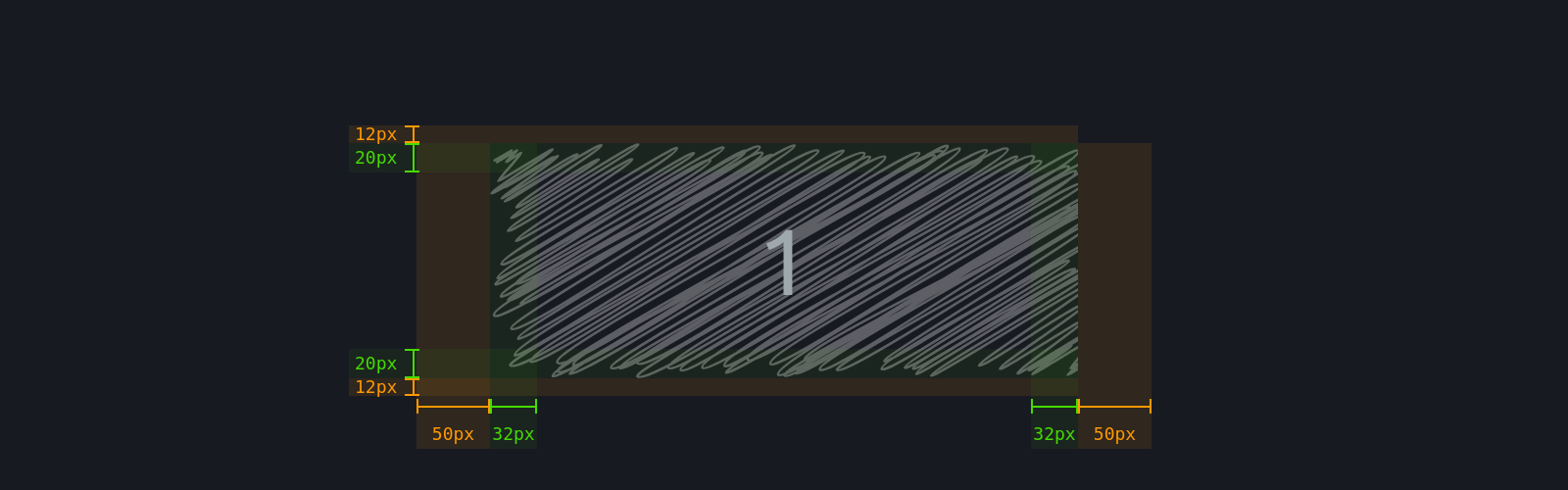

This feature highlights the spacing of an element.

pin *

Type Declaration ​

create() ​

ts
create: (text: string | number, tag: string) => (HTMLElement = spacingCreate);

Create a spacing element with optional text content.

Parameters ​

text ​

The optional text content for the spacing element.

string | number

tag ​

string = 'span'

The HTML tag for the element (default is 'span').

Returns ​

HTMLElement

  • The created spacing element.

Example ​

ts
const spacingElement = create(20, 'div');
document.body.appendChild(spacingElement);

element() ​

ts
element: (targetElement: HTMLElement, options?: SpeccerOptionsInterface) =>
  (Promise<void> = spacingElement);

Create and position spacing elements based on the target element's computed spacing styles.

spacing

Parameters ​

targetElement ​

HTMLElement

The target element to create spacing elements for.

options? ​

SpeccerOptionsInterface

Options

Returns ​

Promise<void>

  • A promise that resolves after creating and positioning the spacing elements.

Example ​

Default, padding and margin ​
ts
const targetElement = document.getElementById('target');
element(targetElement);
Only padding ​
ts
const targetElement = document.getElementById('target');
const options = {
  spacing: {
    padding: true
  }
};

element(targetElement, options);

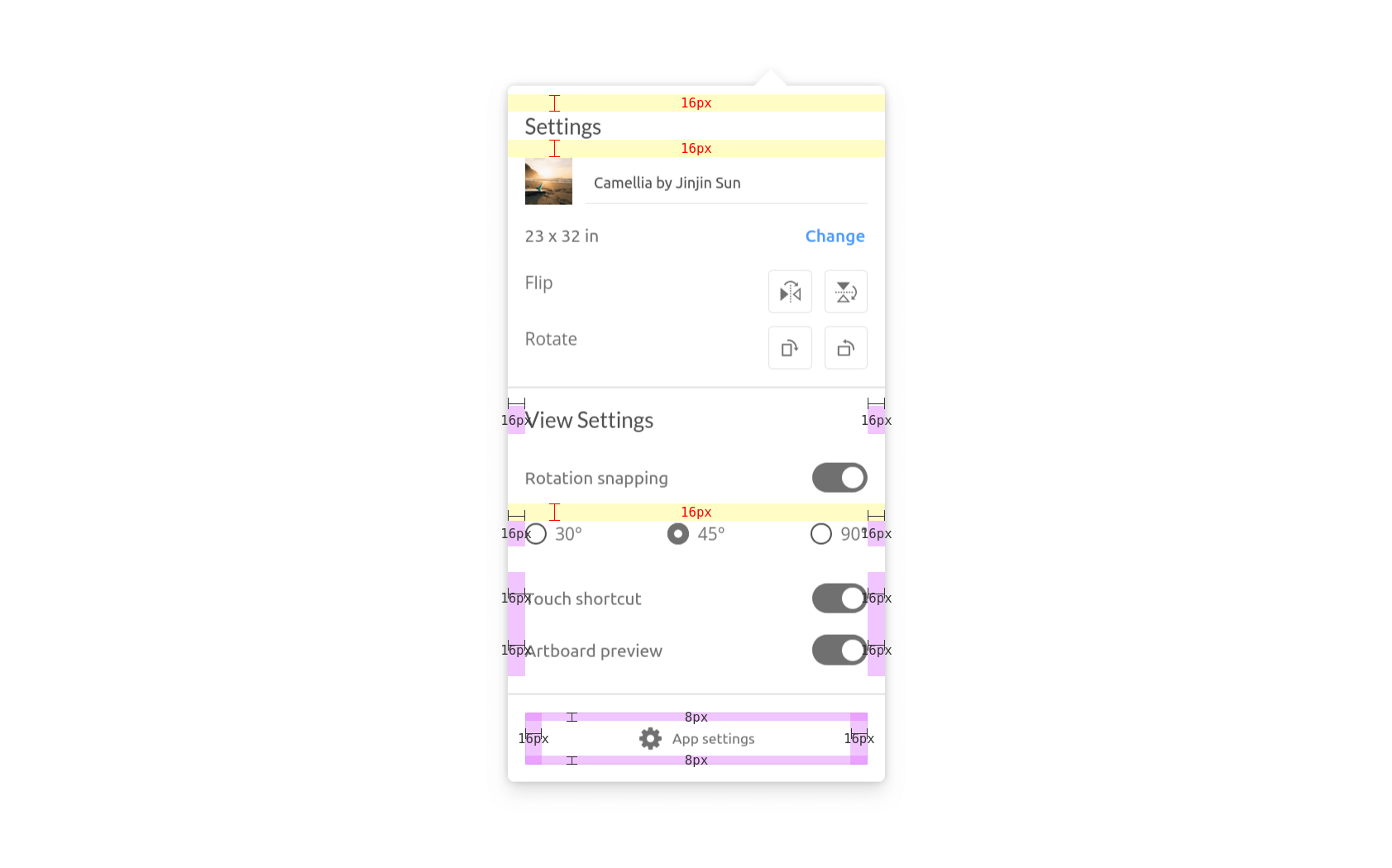

##### Bound style, like the old feature

![spacing](/speccer-spacing-bound.png?raw=true)

This option binds the speccer elements to the bounds of the element container.

```ts
const targetElement = document.getElementById('target');
const options = {
  spacing: {
    bound: true,
  }
};

element(targetElement, options);

Example ​

Use the following code, either for html or js:

html
<div data-speccer="spacing [padding|margin][bound]" class="…">…</div>
ts
const targetElement = document.getElementById('target');
element(targetElement);
