Measure

This feature allows you to display element dimensions.

INFO

For more technical documentation, see the relevant documentation under the API-section.

Usage

In the HTML

Display dimensions with:

<div
  data-speccer="measure [height[left|right]][width top|bottom][subtle][slim]"
  class="…"
></div>

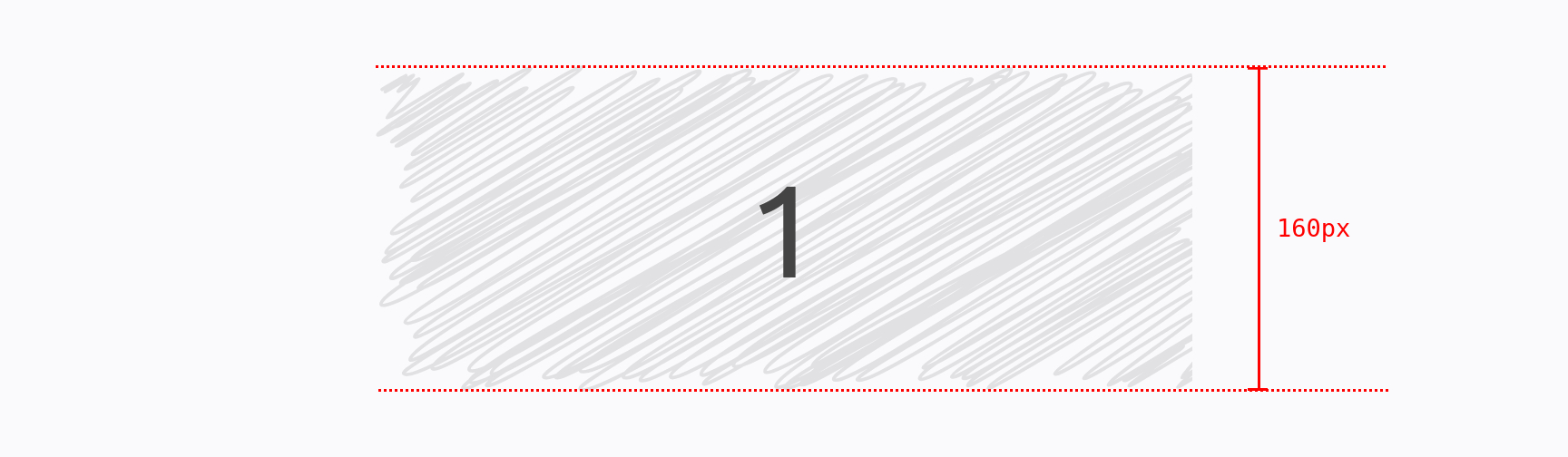

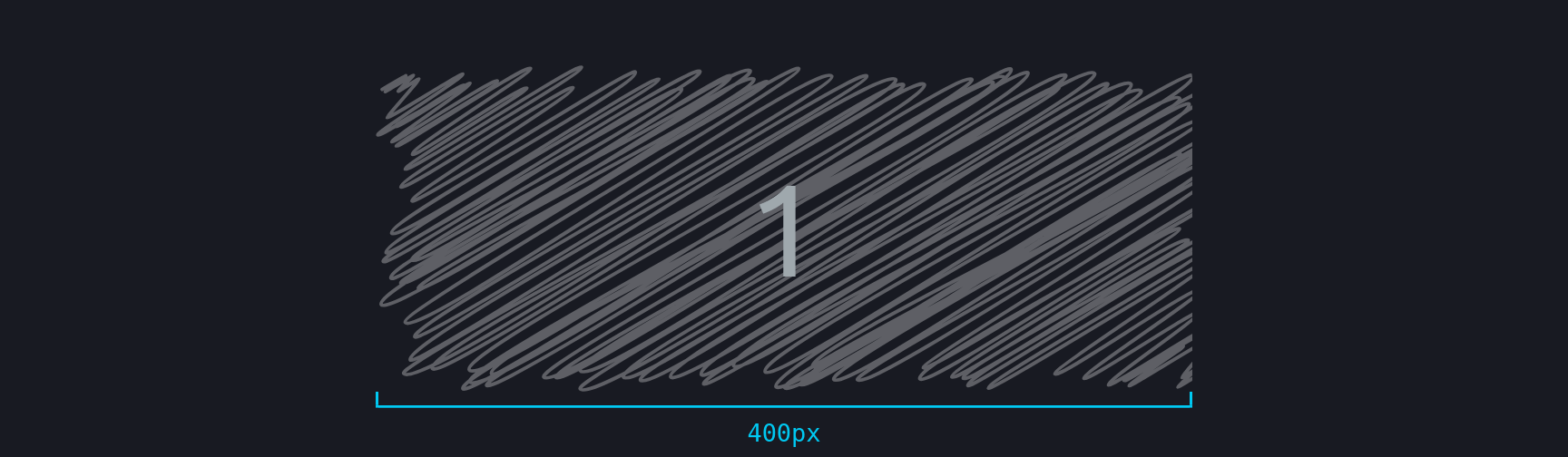

Where height and width comes with placement flags. Default for height is left, default for width is top.

Programmatically

import { measure } from 'https://esm.sh/@phun-ky/speccer';
import type {
  SpeccerOptionsInterface,
  SpeccerPositionType
} from 'https://esm.sh/@phun-ky/speccer';

const { create } = measure as {
  create: (target: HTMLElement, options?: SpeccerOptionsInterface) => void;
};
const element = document.querySelector('…');
const options = {
  slug: 'measureTest',
  type: 'measure',
  position: 'left' | 'top' | 'right' | 'bottom',
  measure: {
    slim: [false | true],
    height: [false | true],
    width: [false | true]
  }
};
await create(element, options);

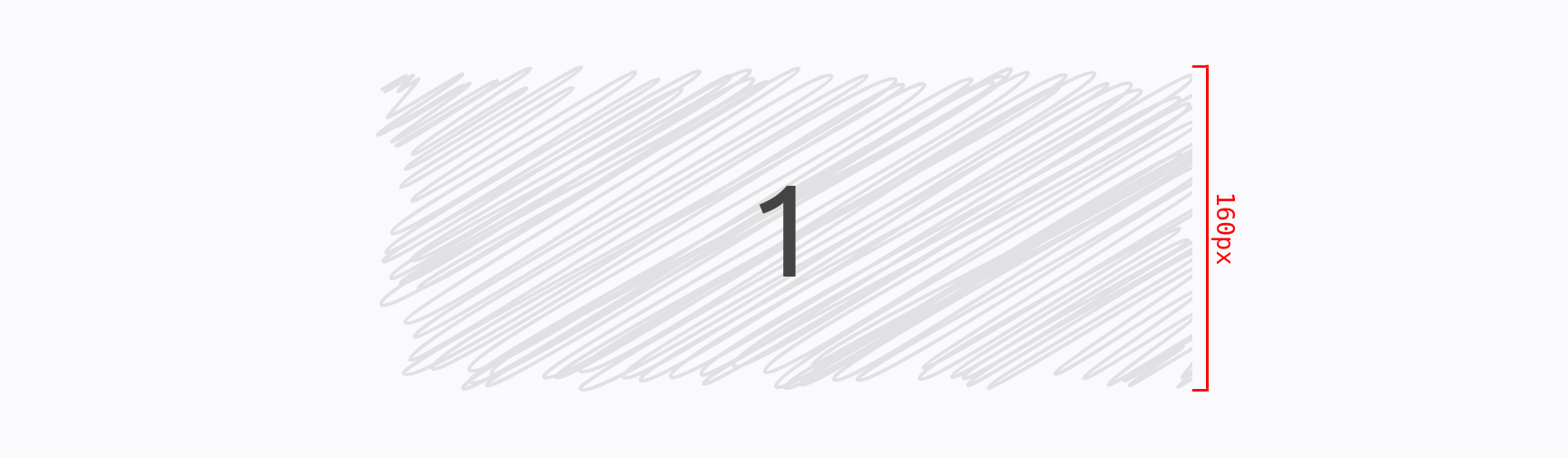

Slim Measure

Use a slim style:

index.html

<div data-speccer="measure slim height left" class="…"></div>

main.ts

import { measure } from 'https://esm.sh/@phun-ky/speccer';
import type {
  SpeccerOptionsInterface,
  SpeccerPositionType
} from 'https://esm.sh/@phun-ky/speccer';

const { create } = measure as {
  create: (target: HTMLElement, options?: SpeccerOptionsInterface) => void;
};
const element = document.querySelector('…');
const options = {
  slug: 'measureTest',
  type: 'measure',
  position: 'left',
  measure: {
    slim: true,
    height: true
  }
};
await create(element, options);

This will give a slimmer look and feel.

Subtle Slim Measure

Use a subtle style for the slim option, uses a dashed line instead of a solid line:

index.html

<div data-speccer="measure slim height left subtle" class="…"></div>

main.ts

import { measure } from 'https://esm.sh/@phun-ky/speccer';
import type {
  SpeccerOptionsInterface,
  SpeccerPositionType
} from 'https://esm.sh/@phun-ky/speccer';

const { create } = measure as {
  create: (target: HTMLElement, options?: SpeccerOptionsInterface) => void;
};
const element = document.querySelector('…');
const options = {
  slug: 'measureTest',
  position: 'left',
  type: 'measure',
  measure: {
    slim: true,
    subtle: true
  }
};
await create(element, options);

This will give a dashed border.
